Audio

Inputs

Media Player

• Input Selections：USB / Bluetooth / FM / Aux In / PC In (Direct USB Audio Port Output)
• Playable Audio Formats：WAV / MP3 / FLAC / APE
• Maximum Supported File Size：64G
• Media Player Control Interfaces：Front Panel / IR / APP

Mic. and Ext. Inputs

• Number of Wired Microphone Input：1 (6.3 mm mono jack)
• Wired Microphone Type：Dynamic

• Wired Microphone Gain：-46 ±2 dB
• Number of Ext. Input：3 (RCA connectors)
• Ext. Input Gain：-15 ±5 dB
• External Input Impedance：47KΩ


Outputs

• Audio Output Power (per channel)：45W @ 8Ω
• Number of Audio Output Channel：12 (with volume control)
• Amplifier Classes：D
• Total Harmonic Distortion (RL = 4Ω)：0.01％ (@ Pout = 4W) / 0.07% (@ Pout  = 10W)
• Frequency Response：20 Hz ~ 20K Hz (±3 dB)
• Bass Control：100 Hz ±10 dB
• Treble Control：10K Hz ±10 dB
• Protections：Short-Circuit / Overheating

• Rec. Output：0 dBV (1V RMS)

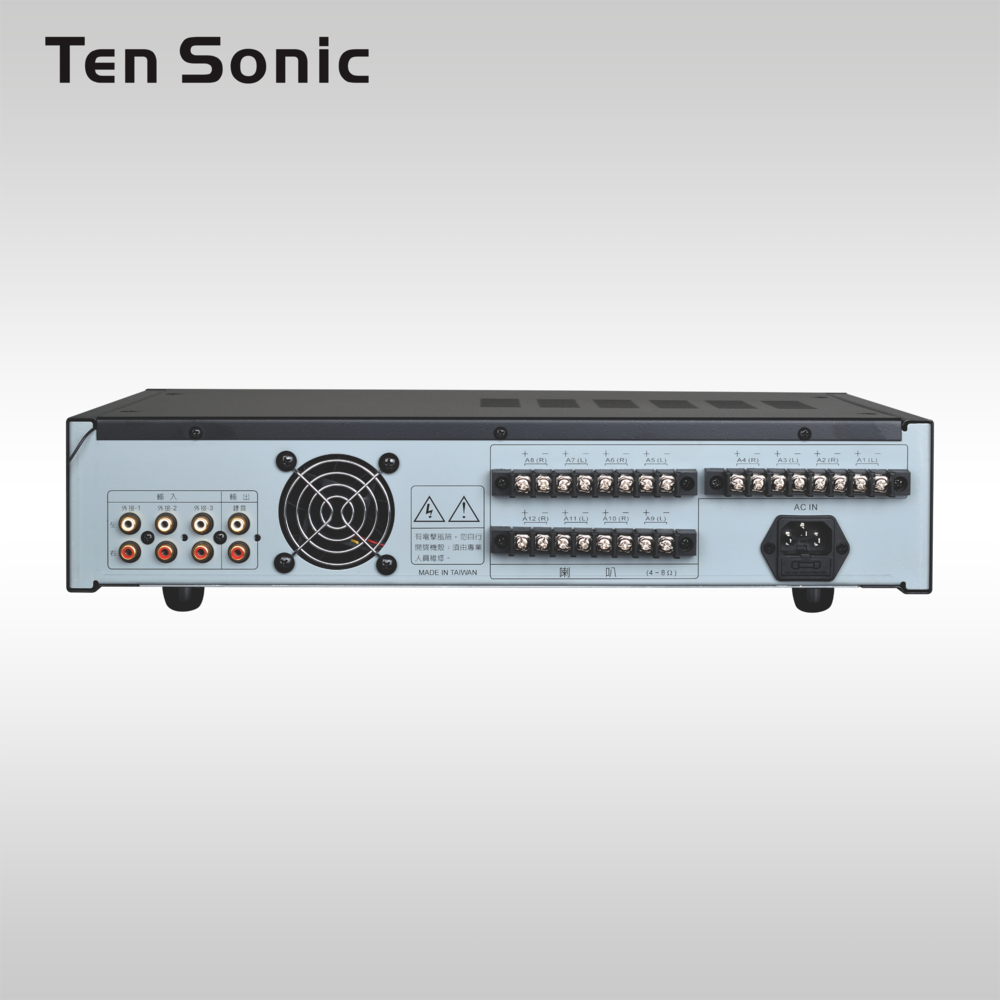

• Speaker Output Terminal：8-terminal single-row bus bar x 3 (M4 screws)

Power

• AC Power：AC 110V or 240V (50/60 Hz)
• Max. Power Consumption：600 W

General

• Dimensions (W x D x H) / mm：430 x 282 (15 mm foot pad excluded) x 88 (15 mm knobs & 20 mm terminals excluded)
• Weight：6.5 KG

• Low-impedance stereo audio output, Hi-Fi audio
• 6-zone stereo or 12-zone mono outputs
• Independent channel-volume control for precise zone-volume adjustment
• Master Volume adjustment for instant overall volume control
• Tone & Balance control for Hi-Fi stereo audio
• Built-in Media Player：USB, Bluetooth, FM , Aux In and PC In (Direct USB Audio Port Output)
• Multiple Media Player controls：main panel, remote controller (IR) and app
• 1 wired microphone for PA broadcasting
• Rec. Output for external recording or for peripheral signal feed
• Active heat sink and fan (HSF)
